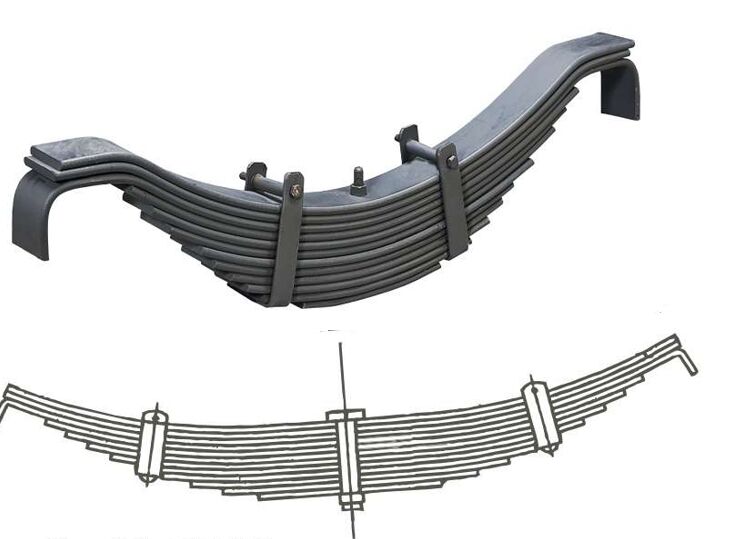

Trailer 12 Leaves Spring Assy

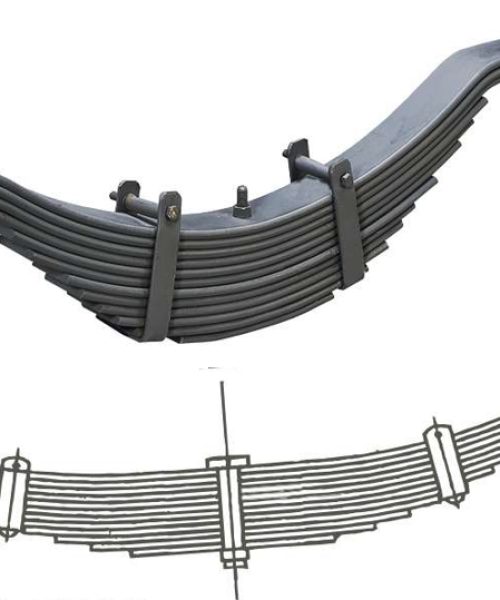

Trailer 12 Leaves Spring Assy
| SRNO | SECTION | SHEARING LENGTH | FINISH LENGHT | C.HOLE | ECCENTRICITY |
|---|---|---|---|---|---|
| 1 | 100*15 THICKNESS | 1176 | 1176 | 16.5(+0.5-0.0) | 588+588 |
| 2 | 100*15 THICKNESS | 1176 | 1176 | 16.5(+0.5-0.0) | 588+588 |
| 3 | 100*15 THICKNESS | 1276 | E/E 1176 | 16.5(+0.5-0.0) | 588+588 |
| 4 | 100*15 THICKNESS | 822 | 822 | 16.5(+0.5-0.0) | 411+411 |
| 5 | 100*15 THICKNESS | 764 | 764 | 16.5(+0.5-0.0) | 382+382 |
| 6 | 100*15 THICKNESS | 708 | 708 | 16.5(+0.5-0.0) | 354+354 |
| 7 | 100*15 THICKNESS | 650 | 650 | 16.5(+0.5-0.0) | 325+325 |
| 8 | 100*15 THICKNESS | 586 | 586 | 16.5(+0.5-0.0) | 293+293 |
| 9 | 100*15 THICKNESS | 484 | 484 | 16.5(+0.5-0.0) | 242+242 |
| 10 | 100*15 THICKNESS | 426 | 426 | 16.5(+0.5-0.0) | 213+213 |
| 11 | 100*15 THICKNESS | 366 | 366 | 16.5(+0.5-0.0) | 183+183 |
| 12 | 100*15 THICKNESS | 304 | 304 | 16.5(+0.5-0.0) | 152+152 |
| SRNO | DESIGNATION | SIZE | MATERIAL | QTY |
|---|---|---|---|---|
| 1 | CENTER BOLT | M16*2P*208MM | 10.9 GRADE | 1 |
| 2 | HEX NUT | M16*2P | 10 CLASS1 | 1 |
| 3 | SPACERS | 012*014*104 | M.S | 2 |
| 4 | CLAMP | 25*6 | M.S | 2 |
| 5 | HEX BOLT | M10*1.5P*128MM | M.S | 2 |
| 6 | HEX NUT | M110*1.5P | M.S | 2 |
| 7 | RIVET | 010*28 | M.S | 2 |
| 8 | BUSH | 030*038*97 | BRONZE | 1 |
