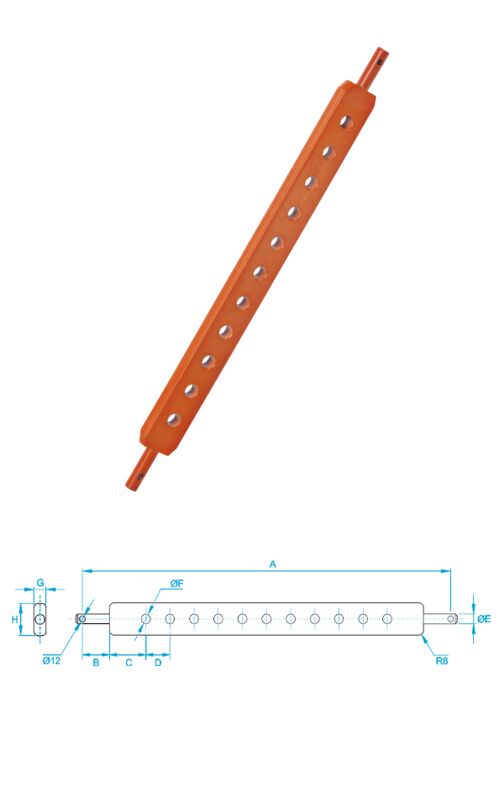

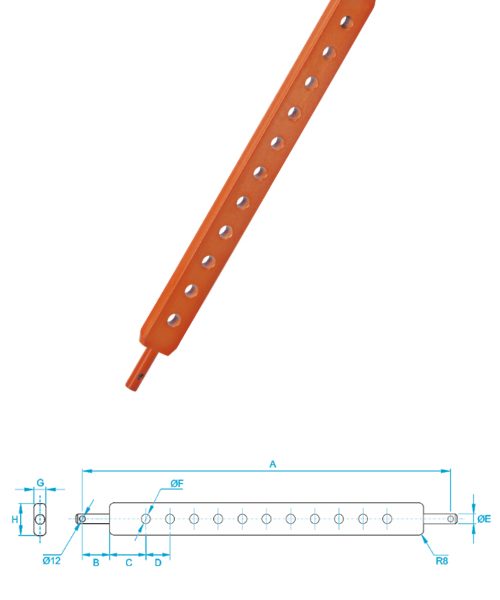

80×40 mm Tractor Draw Bar

Description

About Drawbar

Category: Tractor Towing & Hitch Components

Brand: Jrs Farm Parts

The drawbar is one of the most fundamental and heavily stressed components on any agricultural tractor. It serves as the primary connection point between the tractor and trailed implements — everything from grain carts and balers to forage wagons and heavy tillage tools transfers its draft load through this single component. A drawbar must withstand not only straight-line pulling forces but also the lateral loads, shock impacts, and constant vibration that come with field operation across varied terrain.

Jrs Farm Parts manufactures drawbars from high-grade forged steel at our ISO-certified production facility in Ludhiana, India. The forging process is central to the durability of these components: by shaping the steel at high temperatures, the internal grain flow aligns with the drawbar’s longitudinal axis, producing a part that resists bending, cracking, and fatigue failure far better than cast or cut-from-plate alternatives. Each drawbar is heat-treated after forging to achieve an optimal balance of surface hardness and core toughness — hard enough at the attachment points to resist wear from pin movement, tough enough through the body to absorb the shock loads that are an everyday reality in field work.

We offer swing drawbars in a range of cross-section profiles, including 63×25 mm, 70×30 mm, 76×32 mm, and 80×40 mm sizes. These dimensions cover the requirements of compact and utility tractors up through larger row-crop machines. Multiple length options and pin-hole configurations are available to suit different tractor makes, drawbar brackets, and implement hitch classes. Standard models feature a forged eye at the tractor end for secure anchoring, with the swing function allowing the operator to offset the drawbar left or right for easier implement hookup and improved maneuverability with PTO-driven equipment.

For US farm equipment dealers and aftermarket distributors, Jrs Farm Parts represents a reliable supply partner. Our export-oriented production ensures consistent quality across full-container quantities, with ISO-certified processes governing every stage from raw material sourcing through final inspection. American buyers receive forged-and-heat-treated components at pricing that reflects the efficiency of our Ludhiana manufacturing base, not the overhead of multiple intermediary markups.

Pair with hitch pins and linch pins for complete implement attachment.
