SPRING LOADED TILLER

SPRING LOADED TILLER

SPRING LOADED TILLER

SR NO. MEDIUM DUTY SPRING LOADED TILLER
PRODUCT CODE EILA-10019 EILA-10020 EILA-10021 EILA-10022
1 SIZE 7Tyne 9Tyne 11TYne 13Tyne
2 SPRING 10WD , 49OD , 26 COILS
3 FRAME 75X40MM (TUBE)
4 TYNE 50X19MM FORGED
5 LINKAGE 3 POINT 50X16MM REAR & FRONT
6 ANCHOR PIN 22MM
7 SHOWELS 50X10MM EN45
8 HEIGHT 533MM (1.8 FT)
9 LENGTH 1270MM (4.17 FT) 1227MM (4.025 FT) 1829MM (6 FT) 2286MM (7.5 FT)
10 WIDTH 850MM
11 TILLER PIN 28MM (STANDARD)
12 REQ HP 25-30 40-45 50-55 60-65
13 WEIGHT (KG) APPROX 160 210 260 310
14 FINISH / COLOUR INDUSTRIAL ENAMEL PAINT (ORANGE , RED , BLUE /AS PER ORDER)

Interested in this product ? Please contact us

Description

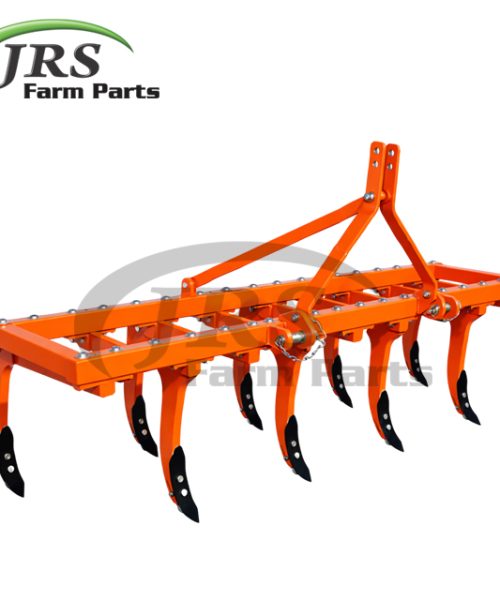

The Spring Loaded Tiller from JRS Parts is a tractor-mounted cultivator fitted with spring-loaded tynes for primary and secondary tillage. The spring loaded tiller lets each tyne trip back over stones and roots and then snap into position, so work continues without damage in stony or rooty soil.

Key Features of the Spring Loaded Tiller

  • Spring-loaded tynes: Each tyne flexes over obstacles and returns automatically to protect the frame.
  • Stony soil ready: Ideal for fields with stones, roots and hard patches.
  • Reversible shovels: Hardened points can be turned or replaced for longer life.
  • Strong frame: Heavy steel bar holds the tynes firmly during deep work.
  • Three point mounting: Fits the standard tractor linkage for quick attachment.

Benefits for Farmers

A spring loaded tiller reduces breakage and downtime in difficult soils while still loosening and aerating the ground well. It works well with other agriculture implements through the tillage season.

Why Choose JRS Parts

JRS Parts is an ISO-certified manufacturer and exporter of tractor implements and 3 point linkage parts based in Ludhiana, Punjab, India. Our implements are built for demanding field conditions. You can read more about the role of the cultivator in soil preparation.

Frequently Asked Questions

What is a spring loaded tiller used for?

It loosens and aerates the soil for tillage, and its spring tynes trip over stones and roots so work continues without damage in difficult ground.

Why choose spring tynes over rigid tynes?

Spring tynes flex over hidden obstacles and return to position, reducing breakage and downtime in stony or rooty soils.

Are the points replaceable?

Yes, the hardened shovels can be turned or replaced once worn, which keeps running costs low.

Does JRS Parts export the spring loaded tiller?

Yes, JRS Parts is an ISO-certified manufacturer and exporter based in Ludhiana, Punjab, India, and supplies implements to customers in many countries.
