Weld On End

Description

About Weld On End

Category: Implement Attachment & Fabrication Components

Brand: Jrs Farm Parts

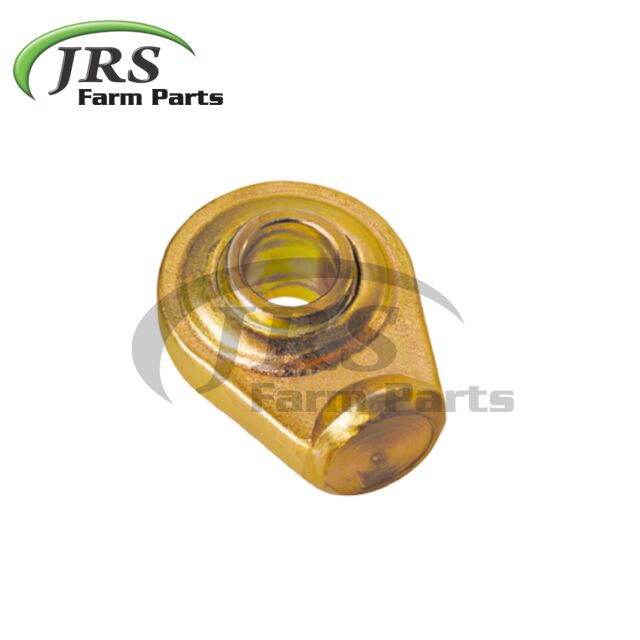

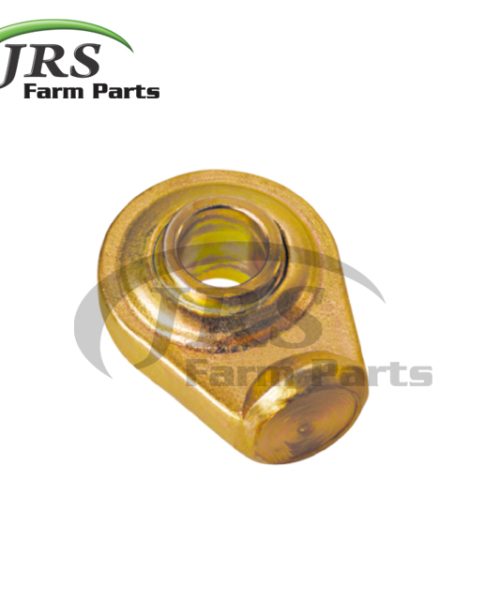

Weld-on ends — also referred to as weld-on ball ends or weld-on hitch ends — are the attachment terminals welded directly to agricultural implements to create the connection points that interface with a tractor’s three-point hitch or quick-hitch system. They are the primary structural interface between tractor and implement, transferring draft, lift, and lateral forces from the implement frame into the tractor’s linkage. The quality of a weld-on end directly determines how securely and precisely an implement connects to the tractor, and a failure at this point — whether from a fractured forging, a worn ball seat, or a failed weld — can result in implement detachment with potentially catastrophic consequences.

Jrs Farm Parts manufactures weld-on ends at our ISO-certified facility in Ludhiana, India, combining a forged steel body with a hardened ball insert to deliver both structural integrity and long-term wear resistance. The body is hot-forged from medium-carbon steel, a process that produces a continuous grain structure flowing through the attachment base and into the ball housing — a significant advantage over cast or multi-piece welded fabrications, which introduce grain discontinuities and potential failure initiation points. After forging, the body is machined to accept the ball insert and to provide clean, beveled weld-prep edges that facilitate strong, full-penetration field welds by the implement manufacturer or end user.

The ball insert — the actual wear surface that contacts the lower link ball or quick-hitch hook — is produced separately from hardened alloy steel and is mechanically captured within the forged body. This two-piece design means the high-wear component is fully hardened for maximum service life while the weldable body remains at a hardness level compatible with standard field welding procedures. This design approach also makes the ball insert field-replaceable in many configurations, extending the service life of the implement.

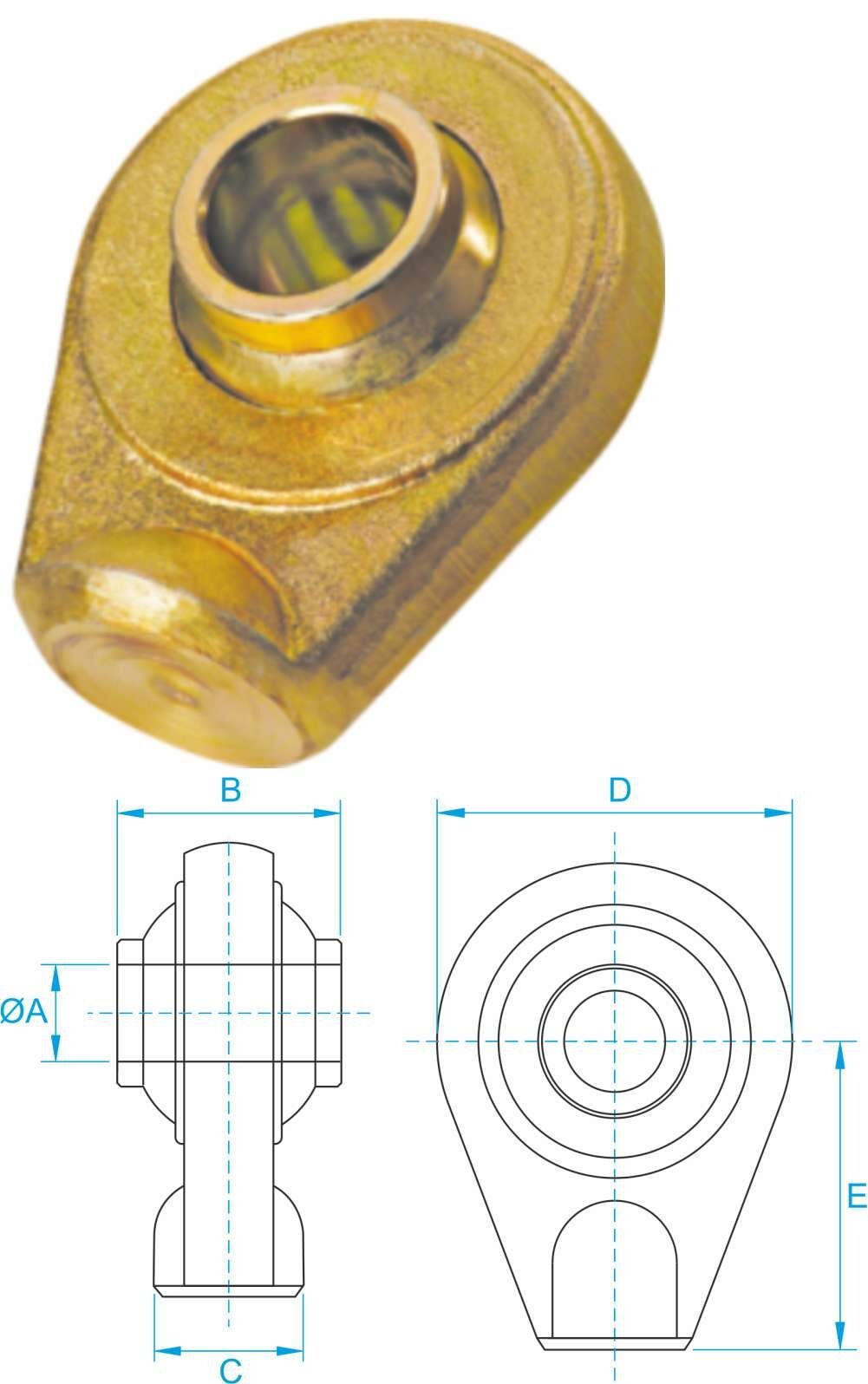

Our product range includes multiple configurations: standard weld-on ends with a flat mounting base, versions with an integral centering pin that aids alignment during welding, and slotted-base variants that provide adjustability during installation. Dimensions are available to match Category 1, Category 2, and Category 3 hitch specifications, covering the implement-attachment requirements across the full range of equipment sizes used in American agriculture.

For US-based implement manufacturers, fabrication shops, and aftermarket parts distributors, Jrs Farm Parts provides a direct sourcing channel for forged weld-on ends manufactured to ISO-certified quality standards. The combination of a forged body, a hardened replaceable ball insert, and export-direct pricing from India makes these components a practical and cost-effective choice for the North American market.
