SR NO. DOUBLE LIFT LAND LEVELER
1 PRODUCT CODE EILA-10039 EILA-10040 EILA-10041
2 LINKAGE PIN 28 28 28
3 FRAME DRAW BAR MOUNTING WITH THEHELP OF MS FLAT SECTION 75X20MM 520MM LONG
4 BLADE DIA 70X10MM HIGH CARBON STEEL
5 THICKNESS OF PLATE 10 MM
6 SIDE SUPPORT VERTICAL 25X10 MM MS FLAT
7 CENTRAL SUPPORT MS ANGLE 40X5 MM
8 SPAN 1850MM 2150MM 2460MM
9 REQ HP 35-40 40-45 55-60
10 WEIGHT (KG) APPROX 140-170 155-190 170-220
11 FINISH / COLOUR INDUSTRIAL ENAMEL PAINT (ORANGE , RED /AS PER ORDER)

Interested in this product ? Please contact us

Description

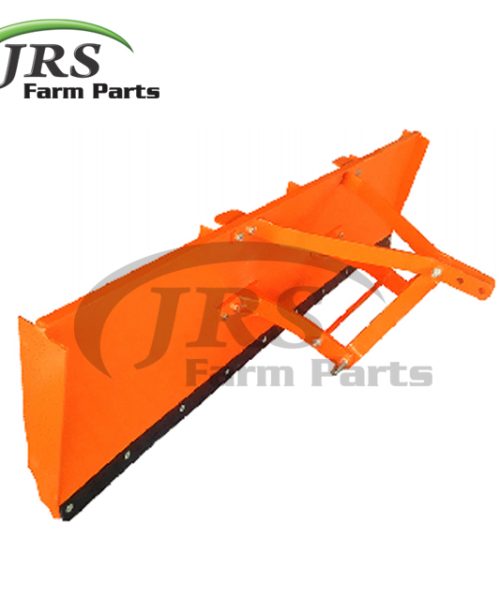

The Double Lift Land Leveller from JRS Parts is a tractor-drawn implement that levels fields and removes high and low spots. This land leveller uses a double lift action to cut soil from raised areas and carry it to hollows, giving an even surface that improves irrigation and crop stand.

Key Features of the Land Leveller

  • Double lift action: Lifts and moves soil efficiently to fill low spots and cut high ones.
  • Even finish: Produces a smooth, level surface for uniform water flow.
  • Strong cutting blade: Hardened blade scrapes and carries soil without bending.
  • Heavy frame: Rugged build keeps the leveller steady under load.
  • Tractor drawn: Pulled behind the tractor for stable work over the whole field.

Benefits for Farmers

A land leveller improves irrigation efficiency and reduces water wastage by removing uneven patches, which supports a more uniform crop. It works well with other agriculture implements used in field preparation.

Why Choose JRS Parts

JRS Parts is an ISO-certified manufacturer and exporter of tractor implements and 3 point linkage parts based in Ludhiana, Punjab, India. Our implements are built for demanding field conditions. You can read more about the practice of land levelling and how it improves water management.

Frequently Asked Questions

What is a land leveller used for?

It is used to remove high and low spots in a field and create an even surface that improves irrigation and crop uniformity.

What does the double lift action do?

The double lift action helps cut soil from raised areas and carry it to hollows efficiently, speeding up the levelling work.

How does levelling help irrigation?

An even field lets water spread uniformly, reducing wastage and dry or waterlogged patches across the crop.

Does JRS Parts export the land leveller?

Yes, JRS Parts is an ISO-certified manufacturer and exporter based in Ludhiana, Punjab, India, and supplies implements to customers in many countries.
