HEAVY DUTY RIGID

HEAVY DUTY RIGID

HEAVY DUTY RIGID

SL NO. HEAVY DUTY SPRING LOADED TILLER
 1 PRODUCT CODE EILA-10023 EILA-10024 EILA-10025 EILA-10026
2 SIZE 7Tyne 9Tyne 11TYne 13Tyne
3 SPRING 9.5WD , 50OD , 27 COILS
4 FRAME 60X10MM (ANGLE)
5 TYNE 65X65X6MM ANGLE (MAIN STEEL)
6 ANCHOR PIN 22MM
7 SHOWELS 50X8MM EN45
8 HEIGHT 533MM (1.8 FT)
9 LENGTH 1543MM (5.06 FT) 2190MM (7.19 FT) 2647MM (8.68 FT) 3104MM (10.18 FT)
10 WIDTH 900MM
11 TILLER PIN 28MM (STANDARD)
12 REQ HP 25-30 40-45 50-55 60-65
13 WEIGHT (KG) 225 285 345 405
14 FINISH / COLOUR INDUSTRIAL ENAMEL PAINT (ORANGE , RED , BLUE /AS PER ORDER)

Interested in this product ? Please contact us

Description

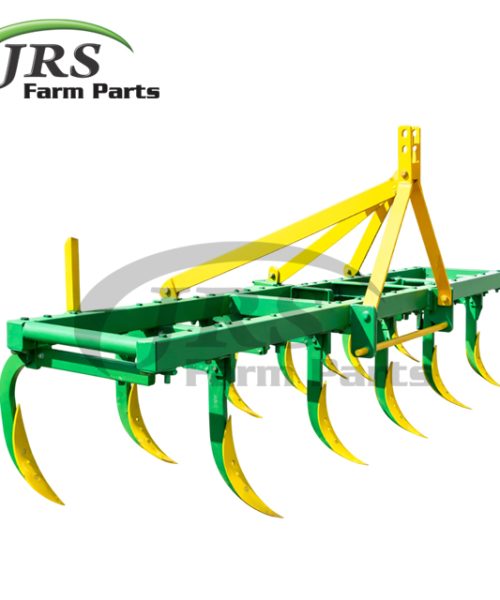

The Heavy Duty Rigid cultivator from JRS Parts is a tractor-mounted tillage implement with strong fixed tynes for deep work in hard ground. This rigid tyne cultivator holds each shovel firmly in place, so it loosens compacted soil, breaks the hardpan and improves root growth across the field.

Key Features of the Rigid Tyne Cultivator

  • Rigid fixed tynes: Solid tynes stay in position for consistent, deep penetration.
  • Hardpan breaking: Loosens compacted layers to improve water and root movement.
  • Reversible shovels: Hardened points can be turned or replaced for longer life.
  • Heavy steel frame: Strong build stands up to deep tillage in hard soil.
  • Three point mounting: Fits the standard tractor linkage for quick attachment.

Benefits for Farmers

A rigid tyne cultivator gives steady, deep loosening that suits firm, dry soils where flexible tynes would ride up. It works well with other agriculture implements through the primary tillage stage.

Why Choose JRS Parts

JRS Parts is an ISO-certified manufacturer and exporter of tractor implements and 3 point linkage parts based in Ludhiana, Punjab, India. Our implements are built for demanding field conditions. You can read more about the role of the cultivator in soil preparation.

Frequently Asked Questions

What is a rigid tyne cultivator used for?

It is used for deep primary tillage to loosen compacted soil, break the hardpan and improve aeration and root growth.

How is it different from a spring tyne cultivator?

A rigid tyne cultivator uses fixed tynes for steady deep work in firm soil, while a spring tyne version flexes over stones in rocky ground.

Are the points replaceable?

Yes, the hardened shovels can be turned or replaced once worn, which keeps running costs low.

Does JRS Parts export the rigid tyne cultivator?

Yes, JRS Parts is an ISO-certified manufacturer and exporter based in Ludhiana, Punjab, India, and supplies implements to customers in many countries.
